HDBaseT is a connectivity technology that allows high-quality video, audio, data, control signals, and power to be transmitted over a single Ethernet cable. It is widely used in home theaters, conference rooms, classrooms, and professional AV installations where long cable runs and clean setups are required.
HDBaseT is a standard designed to extend audio and video signals much farther than traditional HDMI cables. Instead of using short HDMI runs, HDBaseT sends signals over Category Ethernet cables (such as Cat 6A), enabling reliable transmission over long distances.
All of this travels through a single connection, simplifying installations and reducing clutter.

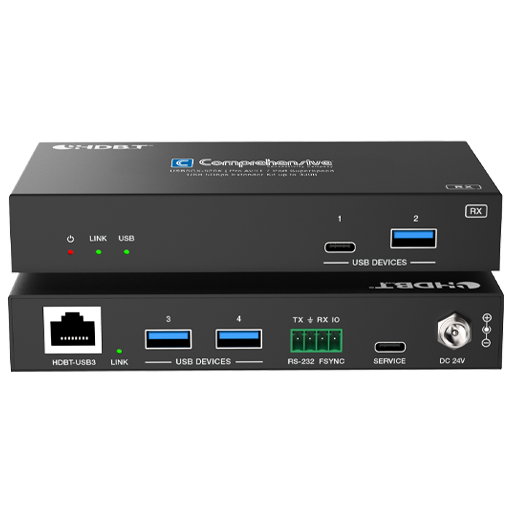

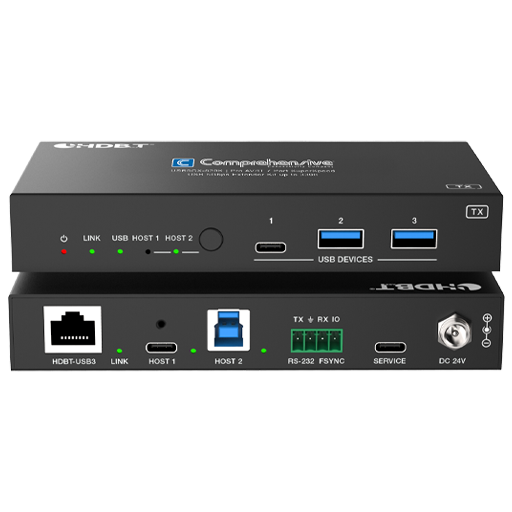

This transmitter–receiver design allows displays to be installed far from source devices without sacrificing signal quality.

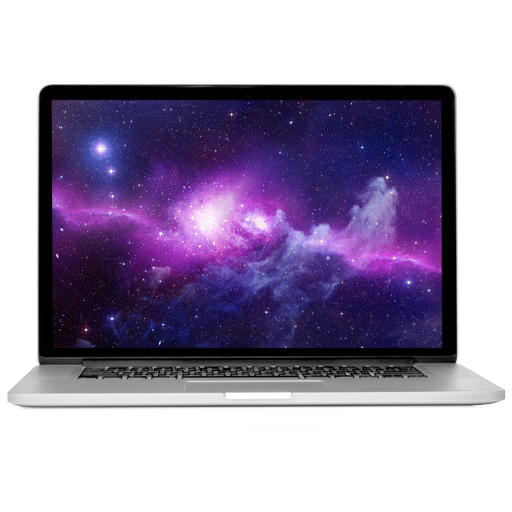

Source Device
PC, Blu-ray, Media Player

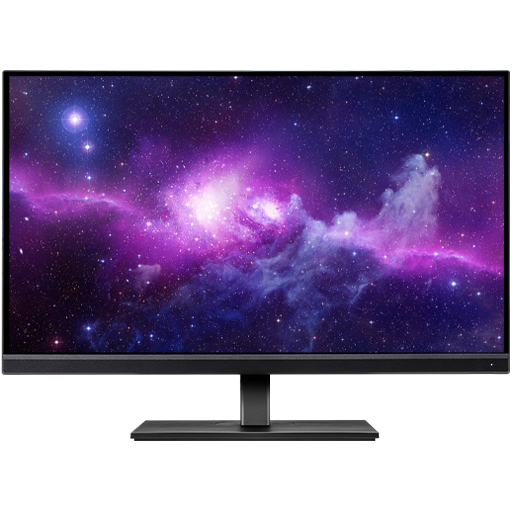

Display
TV / Projector / Monitor
Wall Plate → CAT6 Cable → Projector
HDBaseT 3.0 is the latest generation of the technology. It builds on HDBaseT 2.0 and introduces improvements in bandwidth, power delivery, flexibility, and compatibility. HDBaseT 3.0 is able to deliver full 4K 60Hz 4:4:4 over cat6A up to 330ft.
One of the most important upgrades in HDBaseT 3.0 is increased bandwidth.
| HDBaseT Version | Maximum Bandwidth |
|---|---|
| HDBaseT 2.0 | 10.2 Gbps |
| HDBaseT 3.0 | 16 Gbps |
This higher bandwidth allows HDBaseT 3.0 to support:
HDBaseT supports delivering power over the same Ethernet cable used for video and data.
| Version | Power Capability |
|---|---|
| HDBaseT 2.0 | Up to 100W (shared) |
| HDBaseT 3.0 | Up to 100W per port |
With HDBaseT 3.0, larger displays and powered devices can be supported without separate power supplies. This makes installations cleaner, faster, and more cost-effective.
HDBaseT 3.0 introduces MultiStream Transport (MST), which allows multiple independent video streams to travel over a single cable.
This feature is especially useful in:
HDBaseT 3.0 includes visually lossless compression, which reduces video data size by up to 4:1 without noticeable loss in image quality.
Why This Matters:
This compression is designed so viewers cannot perceive any difference from the original signal.
HDBaseT 3.0 is designed to work smoothly with modern AV technologies.
Supported Technologies:
This ensures HDBaseT 3.0 can integrate into both existing systems and newer installations.

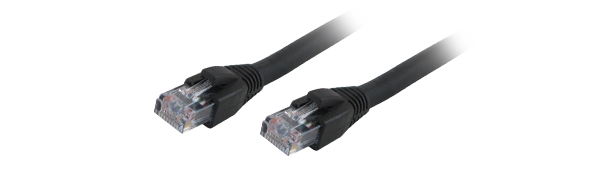

For best performance, Cat 6A U/FTP Ethernet cable is recommended for HDBaseT 3.0 installations.
Why Cat 6A U/FTP?
The shielding and skew control of this cable type help HDBaseT 3.0 achieve maximum bandwidth and distance.
| Feature | HDBaseT 2.0 | HDBaseT 3.0 |
|---|---|---|
| Max Bandwidth | 10.2 Gbps | 16 Gbps |
| Max Video Support | 4K@60Hz | 4K@120Hz |
| Power Delivery | Up to 100W | Up to 100W per port |
| Multiteam Support | No | Yes (MST) |
| Compression | Limited | Visually lossless (4:1) |
| Modern Interface Support | Limited | USB-C, TB3, DP 1.4 |
HDBaseT 3.0 is a powerful and future-ready solution for long-distance, high-performance AV installations.

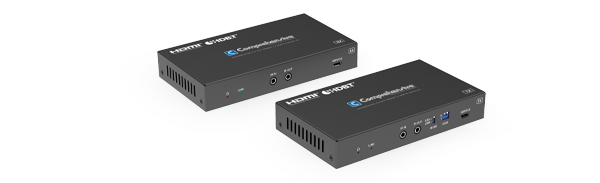

Comprehensive offers a complete range of HDBaseT solutions, including extenders, and specialized cabling designed for reliable, long-distance AV distribution.
