• Single Gang Brushed Anodized Aluminum Plate
• One (1) HDMI Female Port (with HDMI female pigtail)
• One (1) USB 2.0 Type B Female Port (with USB Type A pigtail)
• Quick and easy to install
• Durable commercial construction
• Lifetime Warranty

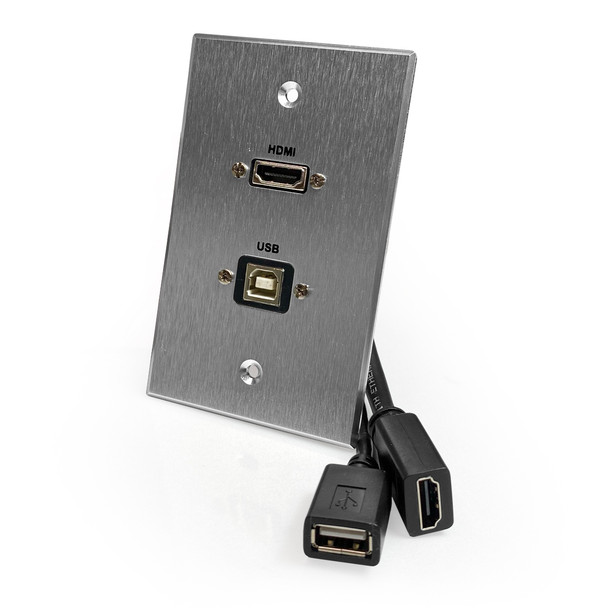

ComprehensiveÂ’s WPPT-HUB1-AC Pass-through single gang HDMI and USB-B 2.0 Wall Plate is perfect for your transition to in-wall cabling. The pass-through ports include thin, flexible pigtail cables that accommodate the tight bend radius required for installations within a standard junction box. Constructed of brushed anodized aluminum, this Pass-Through wall plate offers a clean and professional appearance to reduce cable clutter.
Pass-Through Receptacles and Pigtails
Each HDMI and USB B receptacle includes an attached thin, flexible pigtail cable to accommodate the tight bend radius required for installations within a standard junction box.
High Quality and Durability
Constructed of high quality brushed anodized aluminum, the wall plate is durable and long lasting for commercial usage including offices, meeting spaces, classrooms, hotels, houses of worship and other spaces requiring HDMI room connectivity.
Cuts Down on Cable Clutter
This pass-through wall plate offers a clean and professional appearance and helps reduce cable clutter in professional spaces.
Quick and Easy Installation
ComprehensiveÂ’s aluminum wall plate fits all standard single gang cut-outs and installs in minutes.
This pass-through wall plate comes with ComprehensiveÂ’s Lifetime Warranty for a lifetime of worry-free use.
Performance & Resolution
Performance Grade: Commercial Grade
Signal Technology Version: HDMI 1.4 & 2.0, USB 1.1 & 2.0
Connector Front: HDMI female Type A x 1, USB 2.0 female Type B x 1
Connector Rear: HDMI female Type A x 1, USB 2.0 female Type A x 1
Operating Temperature: 0°C to 70°C
Storage Temperature: -20°C to 70°C
Bend Radius: 1.3Â”
Cable Outer Diameter (OD): HDMI : 7.5 mm
USB: 4.0 mm
Wallplate Dimension Width : 2.75Â”
Cable length: 6Â”
Gauge (AWG): 28 AWG
Jacket Type: PVC
Packaging: Sealed bubble Bag
Shielding: Braided 65%
ATC Certification: No
CL3 Rated: No
Prop 65 Compliant: No
Rohs Compliant: Yes
UL Rated: No
WhatÂ’s In The Packaging
Single Gang Aluminum wallplate with pigtail cables x 1
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
