Description

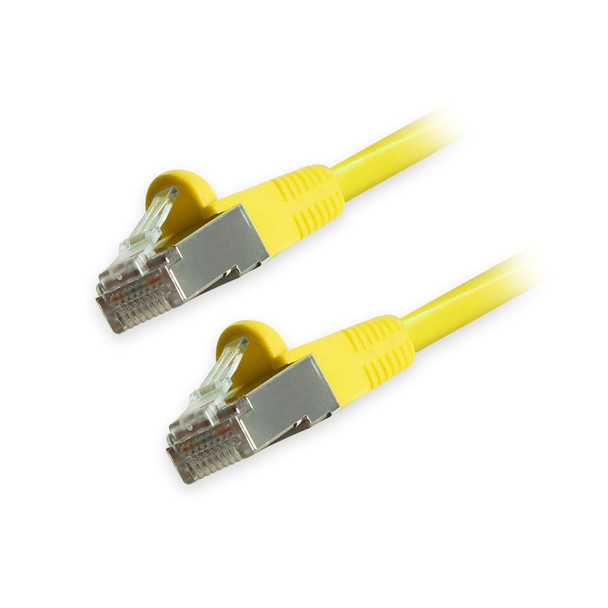

• Shielded Twisted Pair (STP) Category 6 Ethernet Cable with 550MHz bandwidth
• Gold Plated 50u RJ45 2 row Connectors
• 26 AWG stranded construction for commercial applications
• UL Listed, complies with TIA/EIA 568B.2 and adheres to ISO/IEC 11801.
• CM Grade PVC Jacket
• 10/100/1000 BaseT Ethernet networks
• Snagless Mold construction protects the RJ45 plastic tabs from damage during installation.
• Lifetime Warranty
Description
Comprehensive's Shielded Category 6 ethernet cables are the perfect cable for all your data centers, LAN, WAN and other networking applications. Applications include: Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN, 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps A, 622A and T1 Voice.
Fast Data Transfer
These Shielded Category 6 ethernet cables comply with all TIA/EIA 568B specifications and support up to 550Mhz bandwidth for fast data transfer.
Snagless Design with Premium Construction
These Cat 6 shielded network cables have a molded low profile, snagless boot that makes installing these cables quick and easy every time while providing superior strain relief for years of worry-free performance. Comprehensive's shielded Cat 6 cables provide superior protection from electromagnetic (EMI) interference utilizing high quality shielding.
Compliant with TIA/EIA standards
Comprehensive CAT6 Snagless Patch Cables meet all CAT6 TIA/EIA standards and greatly reduces loss compared to standard 100Mhz cable.
Peace of Mind Comes Standard with our Worry-Free Lifetime Warranty
Value is knowing a product you buy today, will work for you tomorrow and in the years to come. At Comprehensive, we are dedicated to providing you with the best cable and connectivity products money can buy at a fair price. But talk is cheap-which is why we put our money where our mouth is and cover all of our cables with our exclusive Worry-Free Lifetime Warranty. So when you purchase a Comprehensive cable product, you can be assured it will keep on working and last a lifetime.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
Performance & Resolution
Bandwidth: Supports voice/data/video distribution applications up to 550 MHz
Performance Grade: Pro Grade
Technology Versions: Category 6
Connections
Connector Side 1: RJ-45 Male Connector Side 2: RJ-45 Male
Electrical
Conductor DC Resistance: 89 Ohm/km (maximum)
Insulation Resistance: 100 Ohm/km (minimum)
Physical Characteristics
Bend Radius: 4.5"
Cable Outer Diameter (OD): 5.3 MM
Conductors: 4 Twisted Pairs Bare copper stranded cable
Color: Yellow
Connector Finish: Nickel Plated
Distance: Up to 100 feet
Gauge (AWG): 26 AWG
Jacket Type: PVC
Connector Material: Polycarbonate
Contact Material: Copper alloy plated with 50u gold
Packaging: Ziplock Bag
Shielding: 80% Tinned Copper Braid
Regulatory
Prop 65 Compliant: No
Rohs Compliant: Yes
UL: Yes
TIA / EIA: 568.B2
Weight (Shipping)
3.5 lb
Warranty
Worry-Free Lifetime
UPC
808447080421
