Description
Features
• 24 gauge Heavy Duty construction
• Integrator Series™ Certified Cables are up to 5x more durable on average than standard cables
• Certified 18Gbps High Speed (End to End)
• CL2P rated for installations in plenum spaces
• Deep Color and x.v. Color
• 120 Hz Refresh Rate
• 5.1/7.1 Lossless Dolby TrueHD and DTS-HD Surround Sound
• Audio Return Channel
• 3-D and Ethernet Capable
• 4K resolution support
• Lip-sync
• HDCP Compliant
• Premium Molded 24k Gold Plated HDMI male connectors on each end
• ProGrip low profile connector utilizes up to 16 lbs of retention force to help keep connector in place
• SureLength cable length indicators make it easy to organize for installations
• Triple Shielded
• 4K UHD resolution
• RoHS Certified
• Lifetime Warranty
Description

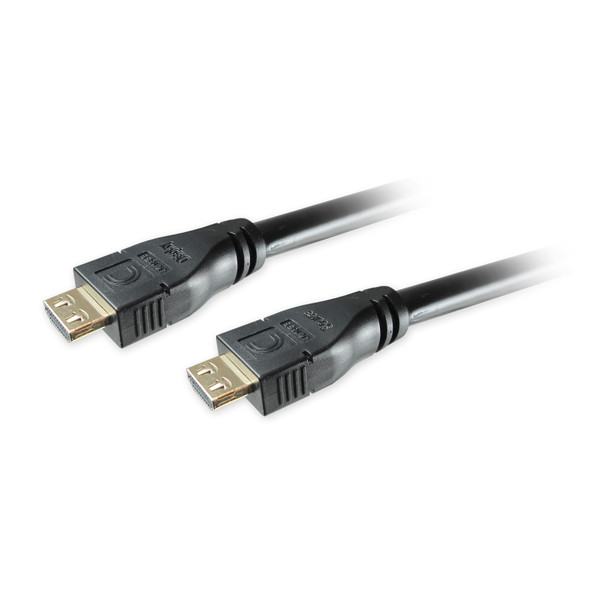

Comprehensive's Plenum Pro AV/IT 18G 4K Active HDMI Cables were designed specifically for commercial and residential system integrators as well as technology professionals in education, corporate, government, houses of worship and other demanding commercial environments. 25ft, 35ft and 50ft lengths utilize advanced active chip technology to deliver a full 4K 18G signal with 4:4:4 Color Space signal. Cables are active and directional.
Plenum Pro AV/IT 18G 4K Active High Speed HDMI cables come equipped with all the latest HDMI features including Ultra HD 4K@60Hz 4:4:4 chroma sampling and 18Gbps bandwidth rating (end to end), transmission of High Dynamic Range (HDR) video, Ethernet, Deep Color, up to 32 audio channels with ARC, support for wide angle theatrical 21:9 aspect ratio.
Comprehensive's exclusive ProGrip connector helps secure the connection with up to 16lbs of retention force to prevent cables from being unintentionally disconnected and un-wanted service calls!
Other exclusive features are Comprehensive's SureLength cable length indicators that clearly indicate the length of each cable on the connector mold - huge time savers for integrators and installers who are constantly sorting out lengths preparing for jobs!
Comprehensive Pro AV/IT cables are constructed using a true professional grade 99.9% High Purity copper 24 or 26 awg center conductor and a premium low capacitance dielectric that provides significantly improved performance compared to standard HDMI cables. Triple shielding including 85% tinned copper braid shielding provides superior rejection of EM and RF interference.
A CL2P plenum rated jacket makes this the perfect cable for both commercial and residential installations. Heavy Duty construction and secure molded strain relief provides unsurpassed durability and a lifetime of worry-free use. All lengths are active and directional.
Since 1974, Comprehensive Pro AV/IT Series Cables have been trusted by Pro AV and IT systems integrators because of their legendary reliability, performance and value. That's why they have been the "go to" cable worldwide for boardrooms, huddle spaces, classrooms, data centers, schools, government installations, stadiums, broadcast studios, stages and other mission critical applications. Pro AV/IT Series Cables are also perfect for anyone looking for professional quality connectivity at a great price.
Active HDMI cables may not be fully compatible with some Apple® adapters. An Apple® adapter may not supply the sufficient voltage for the chipset in an active cable and it also may prevent bi-directional HDCP communication between source and display. Please use our passive HDMI cables for applications where an Apple® adapter may be used.
• 24 gauge Heavy Duty construction
• Integrator Series™ Certified Cables are up to 5x more durable on average than standard cables
• Certified 18Gbps High Speed (End to End)
• CL2P rated for installations in plenum spaces
• Deep Color and x.v. Color
• 120 Hz Refresh Rate
• 5.1/7.1 Lossless Dolby TrueHD and DTS-HD Surround Sound
• Audio Return Channel
• 3-D and Ethernet Capable
• 4K resolution support
• Lip-sync
• HDCP Compliant
• Premium Molded 24k Gold Plated HDMI male connectors on each end
• ProGrip low profile connector utilizes up to 16 lbs of retention force to help keep connector in place
• SureLength cable length indicators make it easy to organize for installations
• Triple Shielded
• 4K UHD resolution
• RoHS Certified
• Lifetime Warranty
Description
Comprehensive's Plenum Pro AV/IT 18G 4K Active HDMI Cables were designed specifically for commercial and residential system integrators as well as technology professionals in education, corporate, government, houses of worship and other demanding commercial environments. 25ft, 35ft and 50ft lengths utilize advanced active chip technology to deliver a full 4K 18G signal with 4:4:4 Color Space signal. Cables are active and directional.
Plenum Pro AV/IT 18G 4K Active High Speed HDMI cables come equipped with all the latest HDMI features including Ultra HD 4K@60Hz 4:4:4 chroma sampling and 18Gbps bandwidth rating (end to end), transmission of High Dynamic Range (HDR) video, Ethernet, Deep Color, up to 32 audio channels with ARC, support for wide angle theatrical 21:9 aspect ratio.
Comprehensive's exclusive ProGrip connector helps secure the connection with up to 16lbs of retention force to prevent cables from being unintentionally disconnected and un-wanted service calls!
Other exclusive features are Comprehensive's SureLength cable length indicators that clearly indicate the length of each cable on the connector mold - huge time savers for integrators and installers who are constantly sorting out lengths preparing for jobs!
Comprehensive Pro AV/IT cables are constructed using a true professional grade 99.9% High Purity copper 24 or 26 awg center conductor and a premium low capacitance dielectric that provides significantly improved performance compared to standard HDMI cables. Triple shielding including 85% tinned copper braid shielding provides superior rejection of EM and RF interference.
A CL2P plenum rated jacket makes this the perfect cable for both commercial and residential installations. Heavy Duty construction and secure molded strain relief provides unsurpassed durability and a lifetime of worry-free use. All lengths are active and directional.
Since 1974, Comprehensive Pro AV/IT Series Cables have been trusted by Pro AV and IT systems integrators because of their legendary reliability, performance and value. That's why they have been the "go to" cable worldwide for boardrooms, huddle spaces, classrooms, data centers, schools, government installations, stadiums, broadcast studios, stages and other mission critical applications. Pro AV/IT Series Cables are also perfect for anyone looking for professional quality connectivity at a great price.
Active HDMI cables may not be fully compatible with some Apple® adapters. An Apple® adapter may not supply the sufficient voltage for the chipset in an active cable and it also may prevent bi-directional HDCP communication between source and display. Please use our passive HDMI cables for applications where an Apple® adapter may be used.
Specifications
Performance Grade: Best Connector Type 1: HDMI Male w ProGrip
Connector Type 2: HDMI Male w ProGrip
Bandwidth or Speed: up to 18 Gbps
Resolution: Up to 4K UHD
Gauge: 24AWG Please note: Lengths 25ft, 35ft, 50ft are active and directional
Center Conductor: Bare Copper
Connector Finish: 24K Gold Plated
Shielding: Triple Shielded, Inner 100% Aluminum Mylar Wrap, Outer 100% Aluminum Mylar Wrap, 85% Tinned Copper Braid
HDCP and CEC Compliant: Yes
Category 2 Certified: Yes
Ethernet Capability: Yes
Supports Audio Return Channel: Yes
3D Ready: Yes
Longer Distance Capability: Yes
Heavy Duty Construction:Yes
UL Rated: Yes
UL Rating: CL2P
RoHS Compliant: Yes
Prop 65 Compliant: Yes
Cable Outer Diameter: 0.41" (10.5 mm)
Jacket Type: Plenum
Jacket Color: Black
Temperature Rating: 75°C
Voltage: 30V
Warranty: Lifetime
Weight Lbs: 2.5
