Description
• Perfect for All USB 3.0 Extension Applications including Video Conferencing
• Extends webcams, PTZ cameras, Oculus rift sensors, keyboards, mice, USB Hubs, USB microphones, external drives, flash sticks, VR headsets, printers, scanners and other digital devices
• Integrator Series™ Certified Cables are up to 5x more durable on average than standard cables

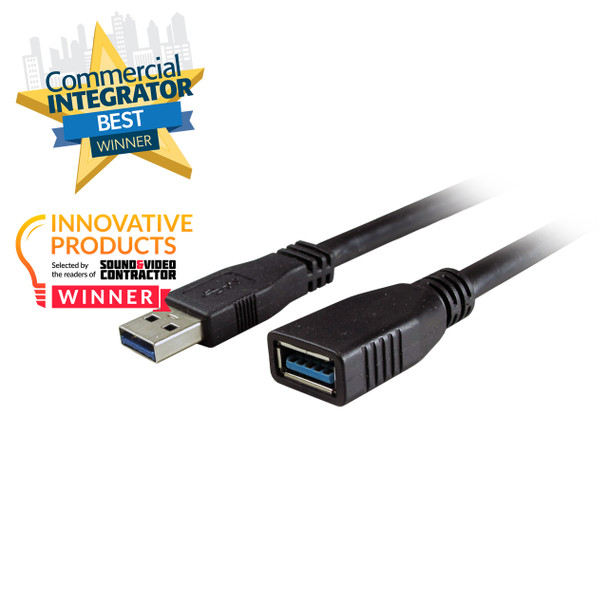

• USB 3.0 Type A Male to Type A Female Active cable
• Transfer rates of up to 5 Gbps
• Supports Bulk and Isochronous Data Transfer
• Durable professional build with premium shielded twisted pair construction
• Plug and play functionality
• PC and Mac compatible
• Compatible with USB specifications 1.1, 2.0 and 3.0
• Optional external power adapter (USB3-AMF-PT) included for high power USB devices that require up to 4.5W
• Molded Strain Relief
• Plenum CMP rated
• RoHS Compliant
• Worry-Free Lifetime Warranty
Description
Comprehensive's USB 3.0 active extension cable is a bus powered extension cable that can be used to increase the extended distance of USB 3.0 up to 50 feet without losing any signal performance. This USB 3.0 Cable extends webcams, PTZ cameras, Oculus rift sensors, keyboards, mice, USB Hubs, USB microphones, external drives, flash sticks, VR headsets, printers, scanners and other digital devices.
Designed for U.C.C., Video Conferencing, Remote Work and Learning Applications
These Pro AV/IT Active Optical Plenum cables were specifically designed for today’s business and education installations including U.C.C., Video Conferencing, Remote Work and Learning applications. Extends USB webcams, PTZ cameras, keyboards, mice, USB Hubs, USB microphones, external drives, flash sticks, VR headsets, printers, scanners and other digital devices.
Embedded Signal Boosters Ensure End to End Signal Performance
With integrated chipsets, Comprehensive' to 50 feet beyond the normal USB extension cables.
Backwards USB 2.0 and 1.1 Compatibility
Comprehensive's SuperSpeed USB 3.0 cable provides fast USB 3.0 signal performance but is also conveniently backwards compatible, providing support of USB 2.0 and 1.1 signals as well.
External Power Option Included
Most USB devices can be powered by the connected source device and will not require external power. However, for added convenience, we include a short USB pigtail cable for external power when needed for high power commercial USB cameras and devices.
Speeds up to 5 Gbps for 10 times faster than USB 2.0
The USB 3.0 cable offers a throughput of up to 5Gbps when used with a USB 3.0 host and device - an astounding 10x the capability of USB 2.0 (480Mbps). USB 3.0 brings significant power and performance enhancements to the popular USB standard while offering backwards compatibility with billions of USB-enabled PC's and peripheral devices currently in use by consumers.
Plenum Rated (CMP) Cable Jacket
This Comprehensive's USB 3.0 extended cable is Plenum (CMP) rated which is suitable for commercial installations.
Pro AV/IT Integrator Series™: Built for Systems Integrators-Built to Last
Comprehensive’s Pro AV/IT Integrator Series™ are designed and engineered specifically for the toughest and most demanding applications AV/IT systems integrators face every day. Running cables inside racks, through walls, pulling through ceilings, across plenums, under floors, around corners, up through table boxes, behind tightly mounted hanging monitors…this is all just another day at the office (or school, government building or event hall) for an integrator. So, integrators need to know that what they just spent all that time and labor installing, is going to work every time, all the time. That is why since 1974, Comprehensive Pro AV/IT Integrator Series™ cables have been the choice of the world’s best integrators.
Lifetime Warranty
Value is knowing a product you buy today, will work for you tomorrow and in the years to come. At Comprehensive, we are dedicated to providing you with the best professional cable and connectivity products money can buy at a fair price. But talk is cheap-which is why we put our money where our mouth is and cover all of our cables with our exclusive Worry-Free Lifetime Warranty. So, when you purchase a Comprehensive cable product, you can be assured it will keep on working and last a lifetime.
Certified Pro AV/IT Premium Commercial Grade Construction
All of our Pro AV/IT Integrator Series™ USB Cables are built to last and utilize the finest materials and workmanship to ensure they stand up to the demands of commercial environments everytime, all the time.
State of the Art Performance
Pro AV/IT Integrator Series™ USB Cables are designed to deliver state-of-the-art performance in every cable. Every Integrator Series™ cable is meticulously manufactured to give you the best resolution and the fastest data speeds all in the most durable and trustworthy cables anywhere.
World Class Durability and Reliability
Integrator Series™ USB Cables are up to 5X more durable on average than standard cables. They are built and tested to endure the demanding environments of commercial systems integration. Since 1974, they are the most reliable cables money can buy.
Type C and SureLength™ Indicators
Type C connectors are included on many Integrator Series™ configurations and only Comprehensive Pro AV/IT Integrator Series™cables offer SureLength™ cable length indicators right on the cable head! SureLength™ indicators clearly indicate the length of each cable on the connector mold - huge time savers for integrators and installers who are constantly sorting out lengths preparing for jobs!
True 4K Video AV Transmission and SuperSpeed 10Gbps Data Transfer
Pro AV/IT Integrator Series™ USB 10G Cables support full 4K@60Hz video with DisplayPort 1.2 alternate mode. Just connect your laptop to a display monitor (with a USB-C port) to get true 4K quality video. Integrator Series™ USB 10G Cables also support data speeds up to 10 Gbps between your host computer and USB equipped devices. That is 2 times faster than USB 3.1 Gen1 and up to 20 times faster than USB 2.0 cables.
Peace of Mind Comes Standard
Value is knowing a product you buy today will work for you tomorrow and in the years to come-and in our case, a lifetime. For almost 50 years, Comprehensive has been making the most reliable and dependable Pro AV/IT cables on the planet for our integrator and professional customers. We live up to that statement with each and every cable we manufacture. So, when you purchase a Comprehensive product, you can be assured it will keep on working and last a lifetime. That’s Quality You Can Count On™
Specifications
Performance & Resolution
Bandwidth: Up to 5 Gbps
Performance Grade: Best/Commercial Grade
Technology Versions: USB 3.0 (SuperSpeed), 2.0 & 1.1
Connections
Connector Side 1: USB A Male
Connector Side 2: USB A Female
Electrical & Power
Temperature Rating: 0-70° C
Power voltage: Up to 5 Volts
Current: 150mA Maximum
Power source:
Bus Powered with no external power required. Draws power from the connected source
Low-power devices (such as mice) can draw their power directly from the bus
High-power devices (such as printers) have their own power supplies and draw minimal power from the bus
Physical Characteristics
Bend Radius: 3.0"
Cable Outer Diameter (OD): 7.0 mm (0.27")
Length of Booster: 78mm (3.07)"
Diameter of Booster: 15.16mm (0.597")
Number of Boosters: 25ft: one ; 35ft : two; 50 ft: three
Placement of Boosters
25 feet cable :
USB male connector to booster : 11' 11"
Booster to USB female connector : 11' 11"
35 feet cable:
USB male connector to booster 1: 17' 5"
Booster 1 to booster 2: 16' 4"
Booster 2 to USB female connector: 8"
50 feet cable:
USB male connector to booster 1: 16' 4"
Booster 1 to booster 2 : 16' 4"
Booster 2 to booster 3 : 15' 9"
Booster 3 to USB female connector : 8"
Conductors: Bare copper
Color: Black
Connector Finish: Nickel Plated
Distance: 25 feet, 35 feet and 50 feet
Directional: Yes
Gauge (AWG): 25 ft: 26 AWG, 35 ft: 26 AWG, 50 ft: 22 AWG
Jacket Type: PVC Plenum (CMP rated)
Packaging: Ziploc Bag
Shielding: 80% Tinned Copper Braid
Regulatory
Prop 65 Compliant: Yes
RoHs Compliant: Yes
UL: Yes
Weight (Shipping)
3.5lbs
Warranty
Worry-Free Lifetime
