Description
Features
• Display resolution up to: 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz;1920x1080P, 60Hz, 10bpc: 144MHz
• DisplayPort ver1.1: DP two lanes or DP one lane
• RGB analog video (VGA port)output: Configured for 700mV voltage swing
• Automatic sink detection and standby mode
• Spread spectrum (de-spreading) for EMI reduction
• EDID Pre-fetch (VGA EDID Conversion)
• Sink detection based on DDC return
• Measured power: Active 1.4W, Standby 100mW
• Power supply: +3.3V (From DisplayPort)
• RoHS Compliant
• Lifetime Warranty
Description

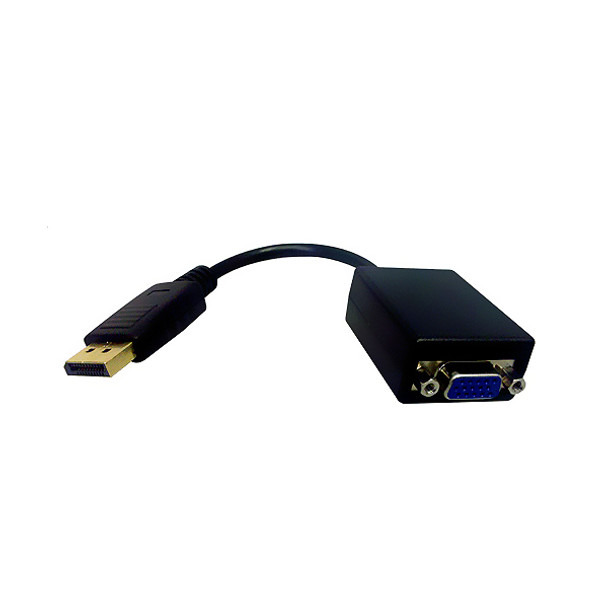

Keep your existing display while using a DisplayPort source. With the DP2VGAF (DisplayPort to VGA) adapter you can connect your DisplayPort source to a VGA display. This adapter supports resolutions up to 1920x1200 and allows you to take full advantage of your VGA capable display.
• Display resolution up to: 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz;1920x1080P, 60Hz, 10bpc: 144MHz
• DisplayPort ver1.1: DP two lanes or DP one lane
• RGB analog video (VGA port)output: Configured for 700mV voltage swing
• Automatic sink detection and standby mode
• Spread spectrum (de-spreading) for EMI reduction
• EDID Pre-fetch (VGA EDID Conversion)
• Sink detection based on DDC return
• Measured power: Active 1.4W, Standby 100mW
• Power supply: +3.3V (From DisplayPort)
• RoHS Compliant
• Lifetime Warranty
Description
Keep your existing display while using a DisplayPort source. With the DP2VGAF (DisplayPort to VGA) adapter you can connect your DisplayPort source to a VGA display. This adapter supports resolutions up to 1920x1200 and allows you to take full advantage of your VGA capable display.
Specifications
Performance Grade: Good
Connector Type 1: DisplayPort Male Input
Connector Type 2: VGA 15 pin Female Output
Resolution: Supports PC resolutions up to 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz;1920x1080P, 60Hz, 10bpc: 144MHz
Versions Supported: DisplayPort 1.1 input and VGA output
Weight Lbs: 0.2
RoHS Compliant: Yes
Warranty: Lifetime
